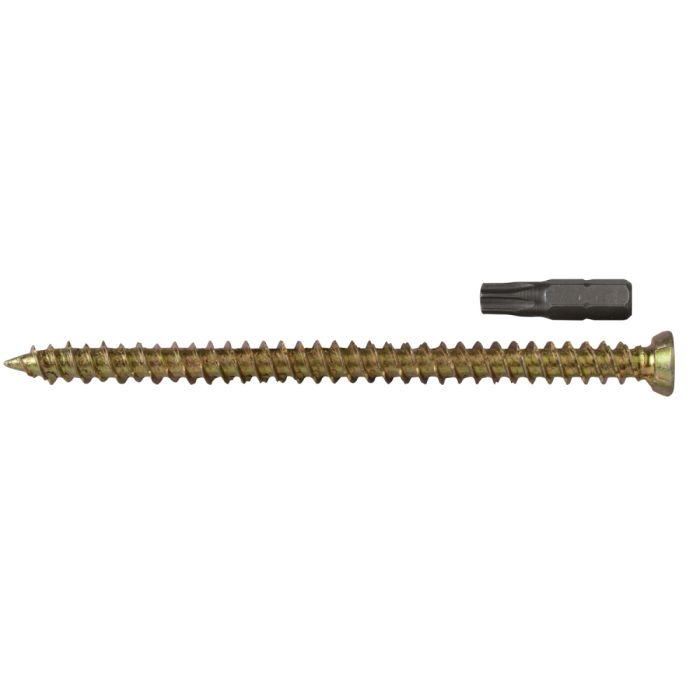

Sheet metal applications usually employ self-tapping or self-tapping masonry screws to join parts. This article offers a brief overview of the most common sheet metal screws. It also explains their various types and how they are categorise.
ANSI Standard Head Types for Metal Drive Screws and Tapping
A lot of the head types that are use that have “self-tapping” screw threads have a similar design to the head kinds that are use in American National Standard machine screws as shown in the section of the heading.
Round Head
The round head features screws for metal studs top and flat bearing surfaces. Due to the superior slot driving capabilities for pan-head screws in comparison to round screws as well as the overlap between the dimensions of cross-recessed pan heads or round heads. It is suggest that pan head screws are utilise in new designs and whenever possible replace in existing designs.
Flats With Undercuts As Well As Oval Countersunk Heads
For shorter lengths, 82-degree and oval countersunk tapping screws have heads that are cut by 70 percent or more of the normal side height, allowing for more thread length on the screws.
Flat Countersunk Head
The countersunk head that is flat has a unidirectional top surface as well as conical bearing surface that have an angle for the head of the one design that is approximately 85 degrees and for a second design, it is around 100 degrees. Due to its limited use and due to the necessity of restricting the variety of products available and designs, the 100-degree countersunk is not regarded as a top choice.
Oval Countersunk Head
The countersunk oval head features an unrounded top surface as well as conical bearing surfaces with an angle of around 82 degrees.
The Flat Trim Head, as well as the Oval Trim Head
Countersunk oval and flat heads are identical to oval and flat countersunk heads, except that the head’s size for a structural timber screws of a particular size can be the larger of two (large trimming head) or two (small trim head) sizes smaller than the normal countersunk heads that are oval and flat in size.
Oval countersunk trim heads have certain radiuses that are defined by the curving top surface faces with the surface of the cone bearing. Trim heads are only available in cross-recessed models.
Pan Head
The pan head with a slotted design features a flat top which is rounded into cylindrical sides as well as an even bearing surface. The recessed pan head features the top rounded and an even bearing surface. The recessed pan head is preferable to the head with a round top.
Hex Head
The head of the hex has a flat or indented upper surface with six sides that are flat and a smooth bearing surface.
Since the hex head is slot, it requires a second operation during production. Which usually results in burrs near the edge of the slot which cause interference with socket wrench engagement. And the capability to wrench on the hex is much greater than the capabilities of the slot it’s not recommend for the creation of new designs.
Hex Washer Head
The hex washer head features an indented top layer and six sides that are form together with flat washers that extend over the sides and offer an even bearing surface.
Since the slotted washer head needs an additional process in its manufacture that can result in burrs on the edges of the slot which frequently hinder socket wrench engagement.
Also, since the capacity to wrench the hex is far greater than that of the slot inside the head with an indentation it cannot be recommend to use for brand new designs.
Truss Head
The truss head is characterized by a low, rounded top with an elongated bearing surface the diameter for a specific stainless steel timber screws size is greater than that of its round head. To facilitate simplifying the product and acknowledging that the truss heads are an intrinsically weak design. It’s not recommend for any new designs.
Method of Identification
Screws for tapping are identified by the following information in the order they are that follows in the table below: Nominal dimensions (a number equal to decimal, fraction, or) Threads per inch Nominal length (fraction or decimal equivalent) point type; product name including head type and driving provisions Material; and the finish that protects it, if needed.
Grades Of Stainless Steel Fasteners
What sets stainless steel apart from the other steel families with low carbon in the absence of chrome? It was discover by England in 1913 through Harry Brearley as the one kind of steel that will not corrosion, stainless steel owes heavily to chromium. This element creates a protective barrier of oxide and protects against rust and corrosion.
Chromium is also a component that allows the steel to recover after being damage. And it doesn’t lose this capability over time. Such as for metals that have been treat for surface treatment to resist corrosion. All kinds of stainless steel are based on a minimum of 10.5 percent chrome; the amount of other metals determines the subcategories of stainless steel. Within each subcategory are distinct kinds of steel
Austenitic Steels Made Of Stainless
Austenitic stainless steels are distinguish with a minimum 6 percent nickel making the steel suitable for cryogenic work. It also has to have at least 16 percent chromium. An extremely high percentage when compared with the other steels made of stainless.
Other elements, like manganese may additionally be found. Which can strengthen austenite’s properties –the carbon solution found in iron that makes stainless steel impervious to corrosion, impervious to the hardening process that is common to heat treatment as well as non-magnetic. Austenitic stainless steels typically contain an 18/8 ratio of nickel to chromium for example, like the standard grade 304.
Ferritic Steel
Ferritic stainless steels are based on chromium for their principal alloy, and do not require the inclusion of other elements. A typical ferritic stainless steel (such as 430) will vary from 10.5 and 18 percent of chromium, leading to moderate corrosion resistance.
Fabrication properties improve when you use higher-grade materials like 434 or 444 which have greater corrosion resistance, and are weldable.
Martensitic Steels Stainless
Martensitic stainless steels, just like ferritic stainless steels, rely heavily on chromium, however with a lower proportion. The standard grades of martensitic stainless steel, like 416 and 410, contain about 12 percent chromium however, what differentiates them from ferritic stainless steels are the inclusion of 2 percent nickel as well as an overall higher proportion of carbon.
Hardness rises with grade Grades 420 and 431 have more hardness and resistance to corrosion Grades 400A 400B and 440C display an increase in hardness following the heat treatment. 416 is a consumable weld grade.
Duplex Stainless Steels
Duplex stainless steels comprise a mix of ferritic and austenitic irons in terms of composition and character. The standard grades, such as 2205 and 2304 are made up of 23 percent chrome. The remainder nickel (hence the designation 2304) 22 percent chromium, and nickel 5 per cent (2205).
Duplex stainless steels resist stress cracking and corrosion. They are tougher than ferritic steels but aren’t as durable as austenitic steels. They have greater strength than austenitic and ferritic steels.
Due to their reduce toughness when temperatures fall below the temperature of -50 degrees Celsius and over 300 degrees Celusius and above 300 degrees Celsius. They should only be use at temperatures between 300 and -50 degrees Celsius.
Summary
The use and presence of self tapping masonry screws machines in our daily lives are numerous. The list goes without stopping with examples of sewer systems, sprinkler systems, artificial snowmaking, pumps as well as actuators, clamping coatings, and so on.
